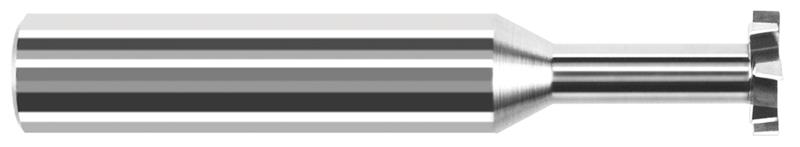

0.6250 in. (5/8) Cutter Diameter x 0.0050 in. Radius x 0.1250 in. (1/8) Width x 0.9380 in. Neck Length 8 Flute Carbide Corner Radius Stagger Keyseat Cutter

  • Item Code: 860460
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Staggered tooth design for freer cutting action
    • Design improves shearing action, minimizes chip dragging and recutting, decreases vibration, and improves side wall finish
    • Alternating RH/LH shear flutes, RH cut
    • Relieved to allow cutting on?both sides of head
    • Tool can be offset to increase width of groove
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Diameter 0.3130"
Overall Length 3.5000" (3-1/2)
Type I
Decimal Diameter 0.6250"
Coating/Finish None
Fractional Diameter 5/8"
Radius Decimal 0.0050"
Reach Multiple (1.5x)
Number of Flutes 8
Brand Harvey Tool
Cutter Width 0.1250" (1/8)
Radial Depth of Cut 0.1460"
Shank Diameter 0.6250" (5/8)
Material Solid Carbide
Neck Length 0.9380"
Top Corner Radius 0.005
