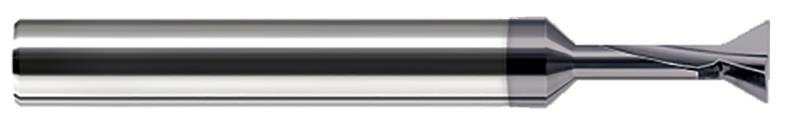

0.5000 in. (1/2) Cutter Diameter x 0.0100 in. Radius x 0.2500 in. (1/4) Neck Length x 40 Deg. Included 3 Flute AlTiN Coated Carbide Corner Radius Dovetail Cutter

  • Item Code: 864032-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Reduced neck for long reach machining
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Length of Cut 0.3120" (5/16)
Material Solid Carbide
Brand Harvey Tool
Coating/Finish AlTiN
Decimal Cutting Diameter 0.5000"
Neck Diameter 0.2810" (9/32)
Overall Length 3.0000" (3)
Fractional Cutting Diameter 1/2"
Neck Length 0.2500" (1/4)
Angle per Side 20
Included Angle 40
Number of Flutes 3
Radius Decimal 0.0100"
Shank Diameter 0.5000" (1/2)
