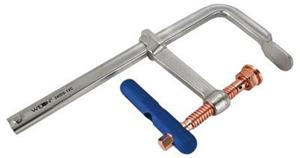

12 Inch Regular Duty Copper F-Clamp
- Item Code: 86410
- Brand: Wilton
- Unit Size: 1
Description
The top of the line Wilton® Spark-DutyTM series with copper spindle is superior when resisting welding spatter. Every Spark-Duty F-Clamp comes standard with an ergonomic, anti-fatigue Wilton-Grip® and V-Groove pad accessory. Boasting a lifetime warranty, the 2400S series F-Clamps clamp down with 2400 pounds of force.
Features
Back To Top- Spark-Duty copper-plated spindle extends the life of the clamp by protecting the spindle and pad from harmful welding spatter.
- Quick-Twist Pads are simple and fast to replace with a V-Groove pad included in every box, or optional serrated pad.
- Ergonomic Wilton-Grip� has anti-fatigue properties and provides comfort during repetitive clamping.
- Drop forged arm provides minimal flex under heavy work loads.
Tech Specs
Back To Top| Gross Weight (lbs.) | 7.8 |
|---|---|
| Model Number | 2400S-12C |
| UPC | 731325228328 |
| Brand | Wilton |
| Spindle Diameter | 3/4 |
| Clamping Capacity (in) | 12 |
| Quick-Twist Plain Pad Stook Number | 2909102 |
| Throat Depth (in) | 5-1/2 |
| Quick-Twist Pads | Yes |
| Clamping Force (lbs) | 2660 |
| Country of Origin | TW |
| Joint with Spring Pin Stock Number | 1701502 |
| Nominal Rail Size (in) | 1-3/16 x 19/32 |
| Quick-Twist Serrated Pad Stock Number | 2909202 |
| Spindle and T-Handle with Spring Pin Stock Number | 1701602 |
| Quick-Twist V-Groove Pad Stock Number | 2909302 |
| Nut Stock Number | 1701702 |
