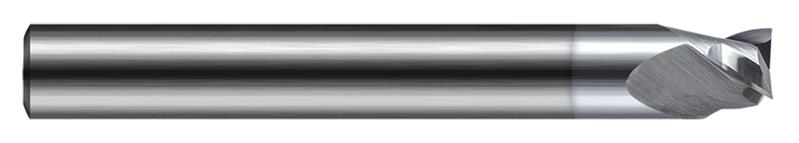

0.2060 in. Cutter Diameter x 0.1180 in. Length of Cut 3 Flute TiB2 Coated Carbide Picatinny Recoil Groove End Mills

  • Item Code: 864806-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Optimized for the grooves across the Picatinny Rail
    • Diameter allows for a single pass to create the groove
    • Stub flute length for improved strength
    • Cutting on transition to allow for slight edge break at top of groove
    • High helix and optimized geometry for improved performance
    • 3 flutes
    • Center cutting
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Center Cutting N
Coolant Through N
Cutter Diameter Decimal 0.2060"
Single/Double End Single End
Weldon Flat N
Chip Breaker N
Material Solid Carbide
Shank Diameter 0.2500" (1/4)
Brand Harvey Tool
Coating/Finish TiB2
Number of Flutes 3
Overall Length 2.5000" (2-1/2)
Length of Cut 0.1180"
