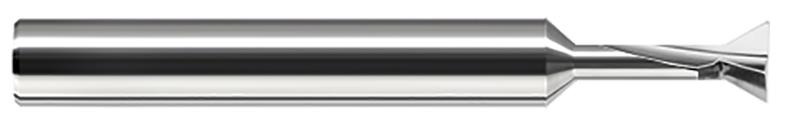

0.0620 in. (1/16) Cutter Diameter x 0.0050 in. Radius x 0.0620 in. (1/16) Neck Length x 60 Deg. Included 2 Flute Carbide Corner Radius Dovetail Cutter

  • Item Code: 865504
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Reduced neck for long reach machining
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 2
Brand Harvey Tool
Angle per Side 30
Coating/Finish None
Material Solid Carbide
Decimal Cutting Diameter 0.0620"
Radius Decimal 0.0050"
Fractional Cutting Diameter 1/16"
Neck Diameter 0.0320"
Length of Cut 0.0320"
Overall Length 1.5000" (1-1/2)
Included Angle 60
Neck Length 0.0620" (1/16)
Shank Diameter 0.1250" (1/8)
