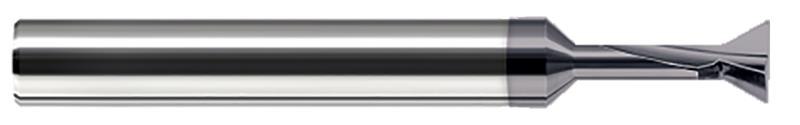

0.2500 in. (1/4) Cutter Diameter x 0.2500 in. (1/4) Neck Length x 60 Deg. Included 2 Flute AlTiN Coated Carbide Pointed Dovetail Cutter

  • Item Code: 865916-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Reduced neck for long reach machining
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Included Angle 60
Decimal Cutting Diameter 0.2500"
Length of Cut 0.1180"
Angle per Side 30
Material Solid Carbide
Neck Length 0.2500" (1/4)
Coating/Finish AlTiN
Neck Diameter 0.1140" (2.9 mm)
Overall Length 2.0000" (2)
Brand Harvey Tool
Shank Diameter 0.2500" (1/4)
Fractional Cutting Diameter 1/4"
Number of Flutes 2
