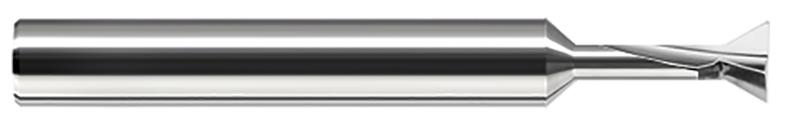

0.2500 in. (1/4) Cutter Diameter x 0.2500 in. (1/4) Neck Length x 60 Deg. Included 2 Flute Carbide Pointed Dovetail Cutter

  • Item Code: 865916
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Reduced neck for long reach machining
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish None
Decimal Cutting Diameter 0.2500"
Fractional Cutting Diameter 1/4"
Length of Cut 0.1180"
Neck Diameter 0.1140" (2.9 mm)
Number of Flutes 2
Overall Length 2.0000" (2)
Brand Harvey Tool
Shank Diameter 0.2500" (1/4)
Angle per Side 30
Included Angle 60
Material Solid Carbide
Neck Length 0.2500" (1/4)
