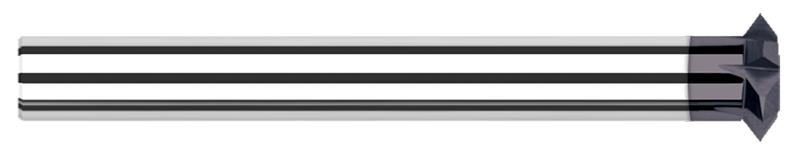

0.2500 in. (1/4) Cutter Diameter x 0.0720 in. Width 6 Flute AlTiN Coated Carbide Reduced Shank Double Angle Shank Cutter

  • Item Code: 866403-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
    • Reduced straight shank allows any chucking depth
    • Tip of included angle ground to a point
    • 60 Deg. angle can also be used for thread milling
    • Solid carbide head brazed onto steel shank
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 30
Material Solid Carbide
Overall Length Decimal 2.5720"
Cutter Width 0.0720"
Fractional Cutting Diameter 1/4"
Number of Flutes 6
Brand Harvey Tool
Coating AlTiN
Included Angle 60
Shank Diameter 0.1250" (1/8)
Decimal Cutting Diameter 0.2500"
