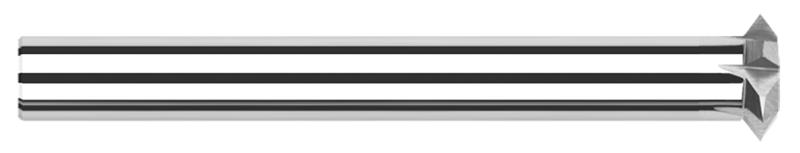

0.2500 in. (1/4) Cutter Diameter x 0.0720 in. Width 6 Flute Carbide Reduced Shank Double Angle Shank Cutter

  • Item Code: 866403
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
    • Reduced straight shank allows any chucking depth
    • Tip of included angle ground to a point
    • 60 Deg. angle can also be used for thread milling
    • Solid carbide head brazed onto steel shank
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.0720"
Overall Length Decimal 2.5720"
Angle per Side 30
Material Solid Carbide
Brand Harvey Tool
Coating None
Included Angle 60
Shank Diameter 0.1250" (1/8)
Decimal Cutting Diameter 0.2500"
Number of Flutes 6
Fractional Cutting Diameter 1/4"
