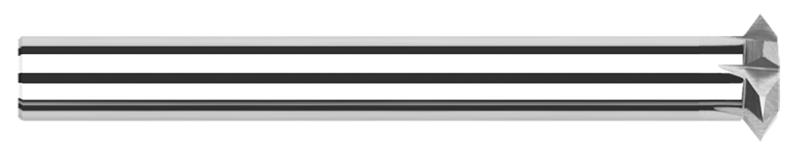

0.3750 in. (3/8) Cutter Diameter x 0.1080 in. Width 8 Flute Carbide Reduced Shank Double Angle Shank Cutter

  • Item Code: 866405
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
    • Reduced straight shank allows any chucking depth
    • Tip of included angle ground to a point
    • 60 Deg. angle can also be used for thread milling
    • Solid carbide head brazed onto steel shank
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.1080"
Overall Length Decimal 3.1080"
Brand Harvey Tool
Coating None
Decimal Cutting Diameter 0.3750"
Number of Flutes 8
Angle per Side 30
Included Angle 60
Material Solid Carbide
Shank Diameter 0.1875" (3/16)
Fractional Cutting Diameter 3/8"
