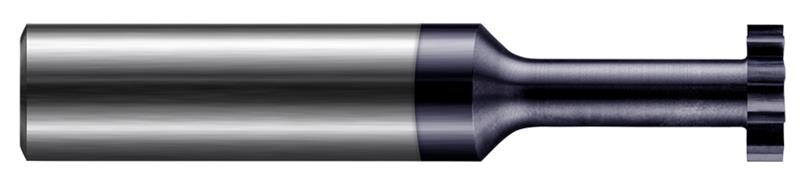

0.1250 in. (1/8) Cutter Diameter x 0.0930 in. (3/32) Width x 0.1870 in. (3/16) Neck Length 8 Flute AlTiN Nano Coated Carbide Square Keyseat Cutter for Hardened Steels

  • Item Code: 867493-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Optimized for hardened steels 45-68Rc with high flute count and specialized internal geometry
    • Latest generation AlTiN Nano coating offer superior hardness and heat resistance
    • 90 degree included angle, cutting on angle only
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Cutter Width 0.0930" (3/32)
Decimal Diameter 0.1250"
Neck Diameter 0.0620" (1/16)
Neck Length 0.1870" (3/16)
Shank Diameter 0.1250" (1/8)
Type I
Number of Flutes 8
Fractional Diameter 1/8"
Radial Depth of Cut 0.0220"
Material Solid Carbide
Coating/Finish AlTiN Nano
Overall Length 1.5000" (1-1/2)
Reach Multiple (1.5x)
