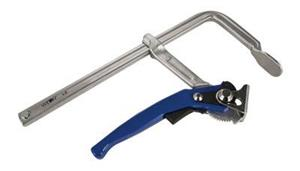

4 Inch LC4 Lever Clamp

  • Item Code: 86800-JPW
  • Brand: Wilton
  • Unit Size: 1

Description

With a spindleless design, the Wilton® Lever Clamps offer a time saving method of clamping your welding work pieces. Torque down on the Wilton® Blue Aluminum handle for maximum force and simply loosen by squeezing the Quick-Trigger release.

Features Tech Specs

Features

Back To Top
    • Ratcheting design allows easy, spindle-free operation.
    • Quick-Trigger release frees clamp pressure with one squeeze.
    • Wilton� Blue aluminum handle is ergonomically designed for repetitive clamping and resistant to heat.
    • Self centering pad centers on workpiece for a sturdy hold.
    • Drop forged arm provides minimal flex under heavy work loads.

Tech Specs

Back To Top
Clamping Capacity (in) 4
Clamping Force (lbs) 350
Model Number LC4
Nominal Rail Size (in) 1/2 x 1/4
Throat Depth (in) 2-3/8
UPC 731325228502
Throat Depth (In.) 2-3/8
Gross Weight (lbs.) 1.5
Quick-Twist Pads No
Country of Origin TW
Brand Wilton
