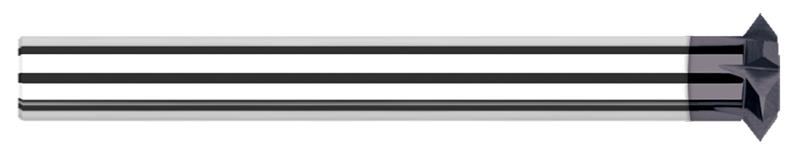

0.6250 in. (5/8) Cutter Diameter x 0.3130 in. Width 8 Flute AlTiN Coated Carbide Reduced Shank Pointed Double Angle Shank Cutter

  • Item Code: 875515-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
    • Reduced straight shank allows any chucking depth
    • Tip of included angle ground to a point
    • 60 degree angle can also be used for thread milling
    • Solid carbide head brazed onto steel shank
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.3130"
Material Solid Carbide
Fractional Cutting Diameter 5/8"
Coating AlTiN
Angle per Side 45
Decimal Cutting Diameter 0.6250"
Included Angle 90
Number of Flutes 8
Shank Diameter 0.3125" (5/16)
Brand Harvey Tool
Overall Length Decimal 3.3130"
