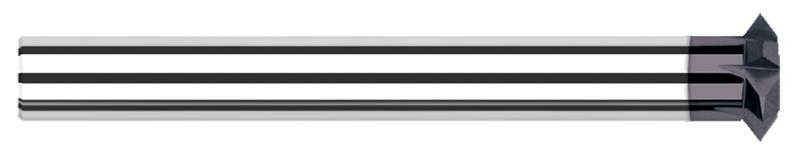

1.2500 in. (1-1/4) Cutter Diameter x 0.5000 in. (1/2) Width 8 Flute AlTiN Coated Carbide Reduced Shank Double Angle Shank Cutter

  • Item Code: 875520-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
    • Reduced straight shank allows any chucking depth
    • Tip of included angle ground to a point
    • 60 Deg. angle can also be used for thread milling
    • Solid carbide head brazed onto steel shank
    • CNC ground in the USA

Tech Specs

Back To Top
Fractional Cutting Diameter 1-1/4"
Decimal Cutting Diameter 1.2500"
Material Solid Carbide
Angle per Side 45
Included Angle 90
Overall Length Decimal 4.5000"
Shank Diameter 0.7500" (3/4)
Coating AlTiN
Number of Flutes 8
Cutter Width 0.5000" (1/2)
Brand Harvey Tool
Overall Length Fractional 4-1/2"
