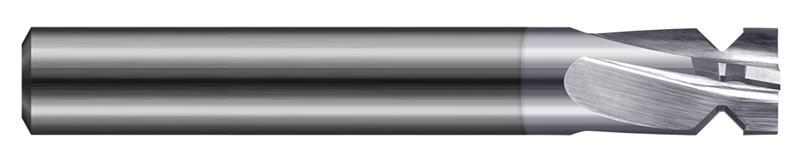

0.6250 in. (5/8) Cutter Diameter x 0.3770 in. Length of Cut 4 Flute TiB2 Coated Carbide Picatinny Rail Form Cutters

  • Item Code: 875640-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed to the MIL-STD-1913 specifications
    • Mill the entire Picatinny Rail in a single pass without tool changes
    • Cutting on the entirety of concave form and OD flat at end
    • 4 helical flutes for better cutting action
    • .005" max radii for all internal corners
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Material Solid Carbide
Number of Flutes 4
Angle per Side 45
Included Angle 90
Weldon Flat N
Minimum Opening Width 0.0210"
Chip Breaker N
Coating/Finish TiB2
Coolant Through N
Cutter Diameter Decimal 0.6250"
Radius Decimal 0.0050"
Type I
Cutter Diameter Fractional 5/8"
End Length 0.1600"
Minor Diameter 0.4070"
Overall Length 3.5000" (3-1/2)
Single/Double End Single End
Brand Harvey Tool
Shank Diameter 0.6250" (5/8)
Center Cutting N
Length of Cut 0.3770"
