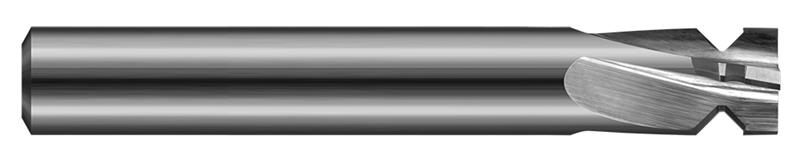

0.6250 in. (5/8) Cutter Diameter x 0.3770 in. Length of Cut 4 Flute Carbide Picatinny Rail Form Cutters

  • Item Code: 875640
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed to the MIL-STD-1913 specifications
    • Mill the entire Picatinny Rail in a single pass without tool changes
    • Cutting on the entirety of concave form and OD flat at end
    • 4 helical flutes for better cutting action
    • .005" max radii for all internal corners
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Minor Diameter 0.4070"
Angle per Side 45
Minimum Opening Width 0.0210"
Included Angle 90
Material Solid Carbide
Number of Flutes 4
Cutter Diameter Fractional 5/8"
End Length 0.1600"
Coating/Finish None
Radius Decimal 0.0050"
Type I
Brand Harvey Tool
Cutter Diameter Decimal 0.6250"
Shank Diameter 0.6250" (5/8)
Length of Cut 0.3770"
Overall Length 3.5000" (3-1/2)
