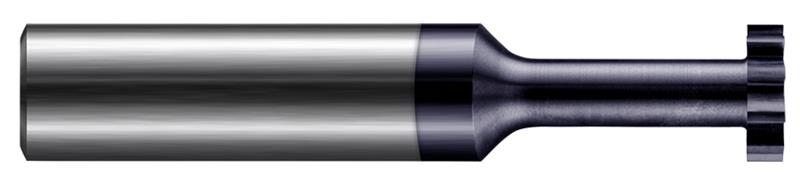

0.1875 in. (3/16) Cutter Diameter x 0.0620 in. (1/16) Width x 0.2810 in. (9/32) Neck Length 8 Flute AlTiN Nano Coated Carbide Square Keyseat Cutter for Hardened Steels

  • Item Code: 875962-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Optimized for hardened steels 45-68Rc with high flute count and specialized internal geometry
    • Latest generation AlTiN Nano coating offer superior hardness and heat resistance
    • 90 degree included angle, cutting on angle only
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Shank Diameter 0.1875" (3/16)
Type I
Reach Multiple (1.5x)
Brand Harvey Tool
Cutter Width 0.0620" (1/16)
Material Solid Carbide
Neck Length 0.2810" (9/32)
Overall Length 2.0000" (2)
Decimal Diameter 0.1875"
Neck Diameter 0.0930" (3/32)
Coating/Finish AlTiN Nano
Fractional Diameter 3/16"
Number of Flutes 8
Radial Depth of Cut 0.0370"
