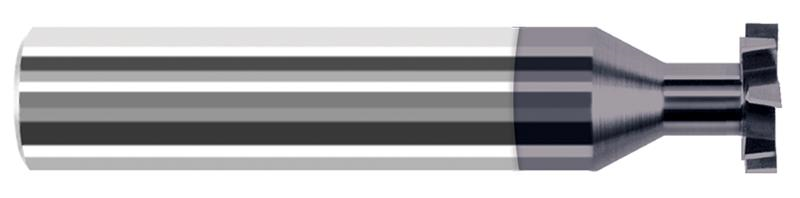

0.2500 in. (1/4) Cutter Diameter x 0.0620 in. (1/16) Width x 0.1250 in. (1/8) Neck Length 6 Flute AlTiN Coated Carbide Square Deep Stagger Keyseat Cutter

  • Item Code: 878962-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Staggered tooth design with alternating RH / LH shear flutes, RH cut
    • Design improves shearing action, minimizes chip dragging and recutting, decreases vibration, and improves side wall finish
    • Relieved to allow cutting on both sides of head
    • Tool can be offset to increase width of groove
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.0620" (1/16)
Material Solid Carbide
Brand Harvey Tool
Radial Depth of Cut 0.0760"
Decimal Diameter 0.2500"
Fractional Diameter 1/4"
Reach Multiple (0.5x)
Shank Diameter 0.2500" (1/4)
Coating/Finish AlTiN
Neck Length 0.1250" (1/8)
Number of Flutes 6
Overall Length 2.5000" (2-1/2)
Type II
Neck Diameter 0.0780" (5/64)
