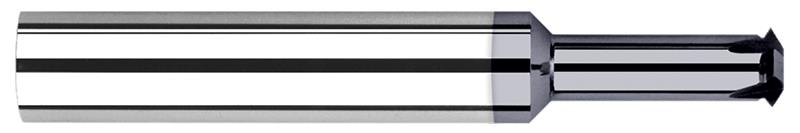

1.500 mm Cutter Diameter x 4.500 mm Reach 2 Flute AlTiN Coated Carbide Single Form M2 Thread Milling Cutter

  • Item Code: 882119-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Single thread form can mill multiple pitches
    • Cuts internal and external 60 degree UN threads
    • Mills right hand and left hand threads
    • Tip of included angle ground to a point
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 30
Included Angle 60
Material Solid Carbide
Coating/Finish AlTiN
Number of Flutes 2
Size M2
Reach Multiple (5x)
Shank Diameter 3.000 mm
Cutter Diameter Metric 1.50 mm
Maximum Depth of Thread 4.500 mm
Overall Length 38.000 mm
Brand Harvey Tool
Length of Cut 0.346 mm
Neck Diameter 0.900 mm
