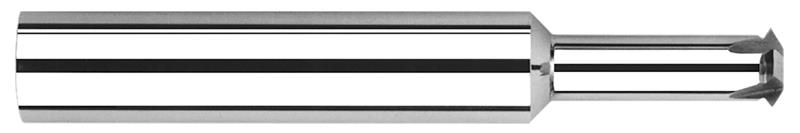

1.500 mm Cutter Diameter x 4.500 mm Reach 2 Flute Carbide Single Form M2 Thread Milling Cutter

  • Item Code: 882119
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Single thread form can mill multiple pitches
    • Cuts internal and external 60 degree UN threads
    • Mills right hand and left hand threads
    • Tip of included angle ground to a point
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Maximum Depth of Thread 4.500 mm
Neck Diameter 0.900 mm
Number of Flutes 2
Overall Length 38.000 mm
Length of Cut 0.346 mm
Angle per Side 30
Coating/Finish None
Included Angle 60
Material Solid Carbide
Size M2
Brand Harvey Tool
Cutter Diameter Metric 1.50 mm
Reach Multiple (5x)
Shank Diameter 3.000 mm
