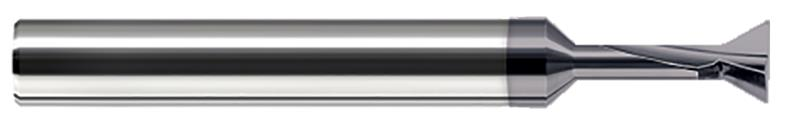

0.1250 in. (1/8) Cutter Diameter x 0.1250 in. (1/8) Neck Length x 90 Deg. Included 2 Flute AlTiN Coated Carbide Pointed Dovetail Cutter

  • Item Code: 884608-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Reduced neck for long reach machining
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Length of Cut 0.0340"
Neck Diameter 0.0570"
Material Solid Carbide
Brand Harvey Tool
Coating/Finish AlTiN
Decimal Cutting Diameter 0.1250"
Neck Length 0.1250" (1/8)
Overall Length 1.5000" (1-1/2)
Angle per Side 45
Fractional Cutting Diameter 1/8"
Included Angle 90
Shank Diameter 0.1250" (1/8)
Number of Flutes 2
