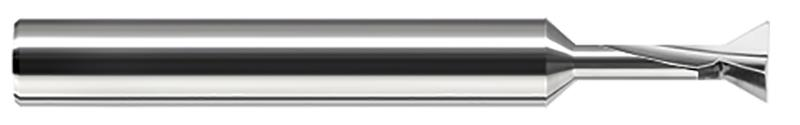

0.1875 in. (3/16) Cutter Diameter x 0.1870 in. (3/16) Neck Length x 90 Deg. Included 2 Flute Carbide Pointed Dovetail Cutter

  • Item Code: 884612
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Reduced neck for long reach machining
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Included Angle 90
Coating/Finish None
Decimal Cutting Diameter 0.1875"
Fractional Cutting Diameter 3/16"
Material Solid Carbide
Overall Length 2.0000" (2)
Brand Harvey Tool
Neck Diameter 0.0840"
Number of Flutes 2
Shank Diameter 0.1875" (3/16)
Angle per Side 45
Neck Length 0.1870" (3/16)
Length of Cut 0.0520"
