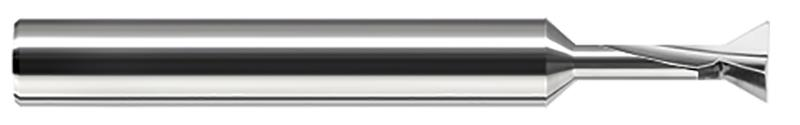

0.3750 in. (3/8) Cutter Diameter x 0.2500 in. (1/4) Neck Length x 90 Deg. Included 3 Flute Carbide Pointed Dovetail Cutter

  • Item Code: 884624
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Reduced neck for long reach machining
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Cutting Diameter 0.3750"
Included Angle 90
Fractional Cutting Diameter 3/8"
Material Solid Carbide
Number of Flutes 3
Coating/Finish None
Shank Diameter 0.3750" (3/8)
Angle per Side 45
Length of Cut 0.1050"
Neck Length 0.2500" (1/4)
Brand Harvey Tool
Neck Diameter 0.1650"
Overall Length 2.5000" (2-1/2)
