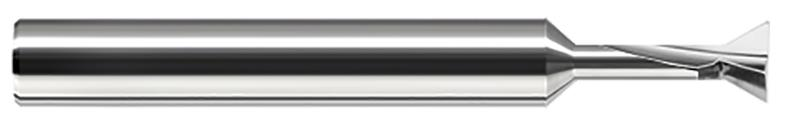

0.5000 in. (1/2) Cutter Diameter x 0.2500 in. (1/4) Neck Length x 90 Deg. Included 3 Flute Carbide Pointed Dovetail Cutter

  • Item Code: 884632
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Reduced neck for long reach machining
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Length of Cut 0.1410"
Neck Diameter 0.2180" (7/32)
Number of Flutes 3
Coating/Finish None
Fractional Cutting Diameter 1/2"
Material Solid Carbide
Angle per Side 45
Overall Length 3.0000" (3)
Neck Length 0.2500" (1/4)
Included Angle 90
Shank Diameter 0.5000" (1/2)
Decimal Cutting Diameter 0.5000"
