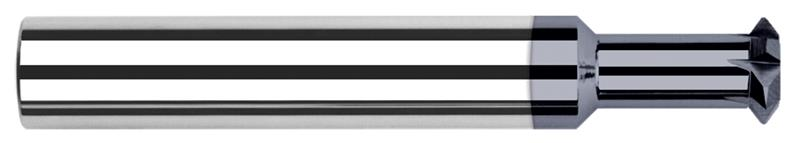

0.5000 in. (1/2) Cutter Diameter x 0.0100 in. Radius x 0.1960 in. Width x 1.0000 in. (1) Neck Length 6 Flute AlTiN Coated Carbide Tip Radius Double Angle Shank Cutter

  • Item Code: 890732-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
    • Radius on tip for improved strength and wear resistance
    • Reduced neck for long reach machining
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Cutting Diameter 0.5000"
Neck Diameter 0.3120" (5/16)
Overall Length Decimal 3.0000"
Shank Diameter 0.5000" (1/2)
Brand Harvey Tool
Overall Length Fractional 3"
Radius Decimal 0.0100"
Cutter Width 0.1960"
Included Angle 90
Neck Length 1.0000" (1)
Angle per Side 45
Coating AlTiN
Number of Flutes 6
Fractional Cutting Diameter 1/2"
Material Solid Carbide
