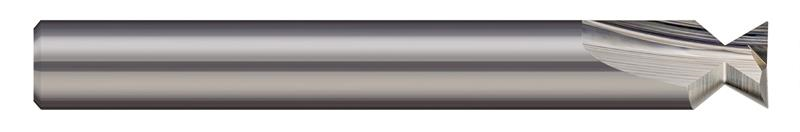

0.1250 in. (1/8) Cutter Diameter x 6 Deg. Included 2 Flute Carbide Pointed Dovetail Cutter

  • Item Code: 891208
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Offered with sharp corner .003", .005", or .010" Corner Radius
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Diameter 0.0990"
Coating/Finish None
Included Angle 6
Material Solid Carbide
Decimal Cutting Diameter 0.1250"
Overall Length 1.5000" (1-1/2)
Angle per Side 3
Fractional Cutting Diameter 1/8"
Shank Diameter 0.1250" (1/8)
Brand Harvey Tool
Length of Cut 0.2500" (1/4)
Number of Flutes 2
