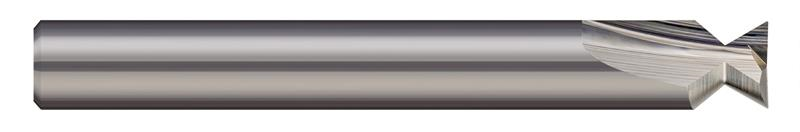

0.1875 in. (3/16) Cutter Diameter x 6 Deg. Included 2 Flute Carbide Pointed Dovetail Cutter

  • Item Code: 891212
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Offered with sharp corner .003", .005", or .010" Corner Radius
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish None
Fractional Cutting Diameter 3/16"
Included Angle 6
Material Solid Carbide
Number of Flutes 2
Overall Length 2.0000" (2)
Angle per Side 3
Decimal Cutting Diameter 0.1875"
Length of Cut 0.3750" (3/8)
Shank Diameter 0.1875" (3/16)
Neck Diameter 0.1480"
Brand Harvey Tool
