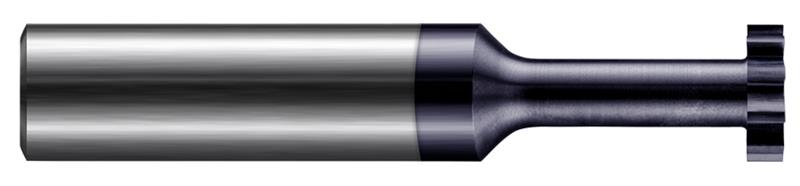

0.5000 in. (1/2) Cutter Diameter x 0.0780 in. (5/64) Width x 0.7500 in. (3/4) Neck Length 10 Flute AlTiN Nano Coated Carbide Square Keyseat Cutter for Hardened Steels

  • Item Code: 891340-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Optimized for hardened steels 45-68Rc with high flute count and specialized internal geometry
    • Latest generation AlTiN Nano coating offer superior hardness and heat resistance
    • 90 degree included angle, cutting on angle only
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Shank Diameter 0.5000" (1/2)
Type I
Material Solid Carbide
Neck Length 0.7500" (3/4)
Brand Harvey Tool
Overall Length 3.0000" (3)
Coating/Finish AlTiN Nano
Cutter Width 0.0780" (5/64)
Decimal Diameter 0.5000"
Neck Diameter 0.2500" (1/4)
Radial Depth of Cut 0.1050"
Reach Multiple (1.5x)
Fractional Diameter 1/2"
Number of Flutes 10
