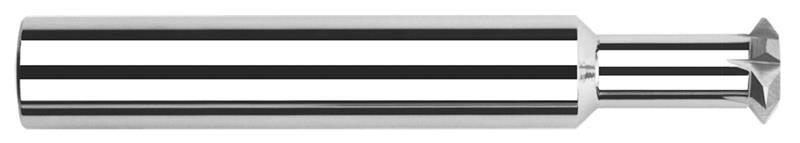

0.3750 in. (3/8) Cutter Diameter x 0.0150 in. (1/64) Radius x 0.1370 in. Width x 1.0000 in. (1) Neck Length 6 Flute Carbide Tip Radius Double Angle Shank Cutter

  • Item Code: 894124
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
    • Radius on tip for improved strength and wear resistance
    • Reduced neck for long reach machining
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating None
Fractional Cutting Diameter 3/8"
Material Solid Carbide
Cutter Width 0.1370"
Number of Flutes 6
Angle per Side 45
Brand Harvey Tool
Radius Decimal 0.0150"
Neck Length 1.0000" (1)
Overall Length Decimal 2.5000"
Overall Length Fractional 2-1/2"
Decimal Cutting Diameter 0.3750"
Neck Diameter 0.2500" (1/4)
Included Angle 90
Radius Fractional 1/64"
Shank Diameter 0.3750" (3/8)
