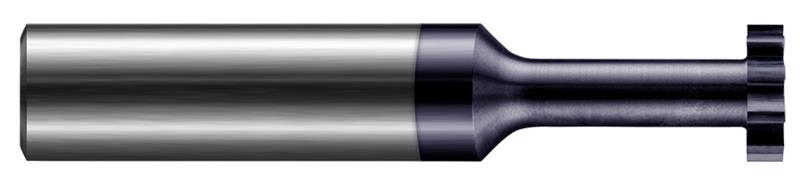

0.3750 in. (3/8) Cutter Diameter x 0.1000 in. Width x 0.5620 in. (9/16) Neck Length 10 Flute AlTiN Nano Coated Carbide Square Standard Keyseat Cutter
- Item Code: 894752-C6
- Brand: Harvey Tool
- Unit Size: 1
Description
For Hardened Steels
Features
Back To Top- Optimized for hardened steels 45-68Rc with high flute count and specialized internal geometry
- Latest generation AlTiN Nano coating offer superior hardness and heat resistance
- 90 deg. included angle, cutting on angle only
- Both sides of cutter are dished for clearance
- Solid carbide
- CNC ground in the USA
Tech Specs
Back To Top| Neck Length | 0.5620" (9/16) |
|---|---|
| Radial Depth Cut | 0.0740" |
| Brand | Harvey Tool |
| Fractional Diameter | 3/8" |
| Coating/Finish | AlTiN Nano |
| Material | Solid Carbide |
| Overall Length | 3.0000" (3) |
| Reach Multiple | (1.5x) |
| Shank Diameter | 0.3750" (3/8) |
| Cutter Width | 0.1000" |
| Decimal Diameter | 0.3750" |
| Type | I |
| Number of Flutes | 10 |
| Neck Diameter | 0.1870" (3/16) |
