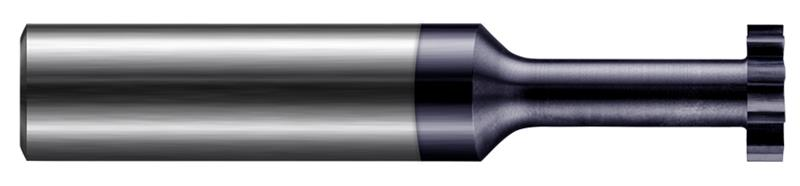

0.3750 in. (3/8) Cutter Diameter x 0.1250 in. (1/8) Width x 0.5620 in. (9/16) Neck Length 10 Flute AlTiN Nano Coated Carbide Square Keyseat Cutter for Hardened Steels

  • Item Code: 894760-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Optimized for hardened steels 45-68Rc with high flute count and specialized internal geometry
    • Latest generation AlTiN Nano coating offer superior hardness and heat resistance
    • 90 degree included angle, cutting on angle only
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Fractional Diameter 3/8"
Overall Length 3.0000" (3)
Radial Depth of Cut 0.0740"
Neck Diameter 0.1870" (3/16)
Cutter Width 0.1250" (1/8)
Neck Length 0.5620" (9/16)
Number of Flutes 10
Brand Harvey Tool
Decimal Diameter 0.3750"
Material Solid Carbide
Shank Diameter 0.3750" (3/8)
Coating/Finish AlTiN Nano
Type I
Reach Multiple (1.5x)
