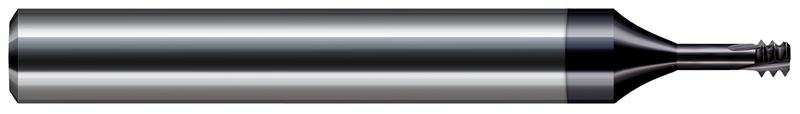

0.2640 in. Cutter Diameter x 0.7500 in. (3/4) Reach 3 Flute AlTiN Nano Coated Carbide Tri-Form #3/8-16 Thread Mill Cutter

  • Item Code: 896464-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for threading in hardened steels and difficult-to-machine materials
    • Left-hand-cut, left-hand spiral designfor climb milling from top to bottom of right-hand threads
    • Three forms and helical design reduces tool pressure and deflection resulting in accurate threads
    • Cuts internal 60 degree UN threads
    • Able to cut larger threads of the same pitch
    • h6 shank tolerance for high precision tool holders
    • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
    • Select carbide grade for maximum tool life
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Cutter Diameter Decimal 0.2640"
Number of Flutes 3
Overall Length 2.5000" (2-1/2)
Chip Breaker N
Coating/Finish AlTiN Nano
Included Angle 60
Length of Cut 0.1875" (3/16)
Material Solid Carbide
Center Cutting N
Coolant Through N
Shank Diameter 0.3125" (5/16)
Single/Double End Single End
Size 3/8-16
Weldon Flat N
Maximum Depth of Thread 0.7500" (3/4)
Neck Diameter 0.1860"
