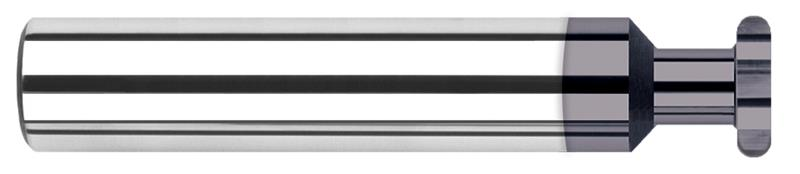

0.5000 in. (1/2) Cutter Diameter x 0.0937 in. (3/32) Radius x 0.2500 in. (1/4) Neck Length 6 Flute AlTiN Coated Carbide Full Radius Deep Keyseat Cutter

  • Item Code: 898593-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 6 flutes
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Length 0.2500" (1/4)
Shank Diameter 0.5000" (1/2)
Brand Harvey Tool
Radius Decimal 0.0937"
Fractional Diameter 1/2"
Number of Flutes 6
Overall Length 3.0000" (3)
Radial Depth of Cut 0.1620"
Radius Fractional 3/32"
Decimal Diameter 0.5000"
Material Solid Carbide
Neck Diameter 0.1560" (5/32)
Type II
Reach Multiple (0.5x)
Coating/Finish AlTiN
Cutter Width 0.1874"
