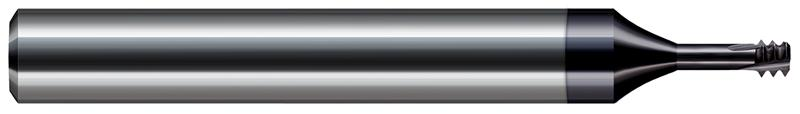

0.0850 in. Cutter Diameter x 0.0930 in. (3/32) Reach 3 Flute AlTiN Nano Coated Carbide Tri-Form #4-40 Thread Mill Cutter

  • Item Code: 899916-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for threading in hardened steels and difficult-to-machine materials
    • Left-hand-cut, left-hand spiral designfor climb milling from top to bottom of right-hand threads
    • Three forms and helical design reduces tool pressure and deflection resulting in accurate threads
    • Cuts internal 60 degree UN threads
    • Able to cut larger threads of the same pitch
    • h6 shank tolerance for high precision tool holders
    • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
    • Select carbide grade for maximum tool life
    • CNC ground in the USA

Tech Specs

Back To Top
Maximum Depth of Thread 0.0930" (3/32)
Length of Cut 0.0750"
Overall Length 2.5000" (2-1/2)
Size 4-40
Shank Diameter 0.2500" (1/4)
Coating/Finish AlTiN Nano
Cutter Diameter Decimal 0.0850"
Number of Flutes 3
Brand Harvey Tool
Neck Diameter 0.0530"
Included Angle 60
Material Solid Carbide
