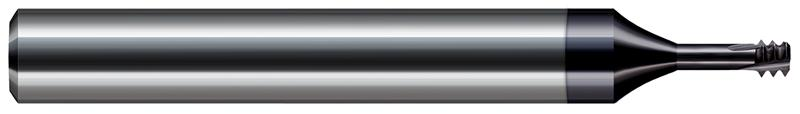

0.2360 in. (6 mm) Cutter Diameter x 0.3750 in. (3/8) Reach 3 Flute AlTiN Nano Coated Carbide Tri-Form #5/16-18 Thread Mill Cutter

  • Item Code: 899954-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for threading in hardened steels and difficult-to-machine materials
    • Left-hand-cut, left-hand spiral designfor climb milling from top to bottom of right-hand threads
    • Three forms and helical design reduces tool pressure and deflection resulting in accurate threads
    • Cuts internal 60 degree UN threads
    • Able to cut larger threads of the same pitch
    • h6 shank tolerance for high precision tool holders
    • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
    • Select carbide grade for maximum tool life
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Diameter Decimal 0.2360"
Size 5/16/2018
Length of Cut 0.1667"
Material Solid Carbide
Maximum Depth of Thread 0.3750" (3/8)
Overall Length 2.5000" (2-1/2)
Weldon Flat N
Included Angle 60
Brand Harvey Tool
Neck Diameter 0.1660"
Shank Diameter 0.2500" (1/4)
Chip Breaker N
Coating/Finish AlTiN Nano
Coolant Through N
Single/Double End Single End
Center Cutting N
Cutter Diameter Metric 6.00 mm
Number of Flutes 3
