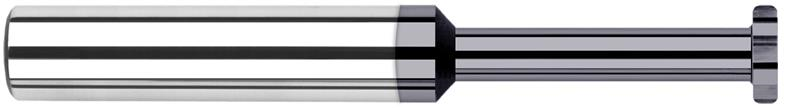

0.2500 in. (1/4) Cutter Diameter x 0.0100 in. Radius x 0.1250 in. (1/8) Width x 0.7500 in. (3/4) Neck Length 6 Flute AlTiN Coated Carbide Corner Radius Keyseat Cutter

  • Item Code: 900095-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Diameter 0.1250" (1/8)
Neck Length 0.7500" (3/4)
Radial Depth of Cut 0.0530"
Radius Decimal 0.0100"
Material Solid Carbide
Coating/Finish AlTiN
Reach Multiple (3x)
Top Corner Radius 0.01
Type I
Cutter Width 0.1250" (1/8)
Decimal Diameter 0.2500"
Fractional Diameter 1/4"
Brand Harvey Tool
Overall Length 2.5000" (2-1/2)
Number of Flutes 6
Shank Diameter 0.2500" (1/4)
