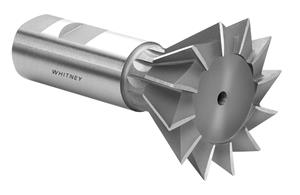

3/8 in. x 60 deg. M42 Cobalt Dovetail Milling Cutter - Uncoated/Straight Tooth

  • Item Code: 903760M42
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Dovetail Milling Cutters M42 Cobalt

Straight Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Single Angle
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672202683
Number of Teeth 6
Overall Length (Inch) 2-1/8"
Shank Type Weldon
Included Angle 60
Angle Tolerance 1/4 deg.
Cut Width 3/16"
Metric Cutting Diameter 9.52 mm
Style 60 Degree
Brand Whitney Tool
Width Tolerance 0.015"
Coating/Finish None
Fractional Cutting Diameter 3/8"
Material Cobalt
OD Tolerance 0.010"
Shank Diameter 3/8"
Shank Diameter Tolerance +0", -0.0005"
Tooth Configuration Straight
