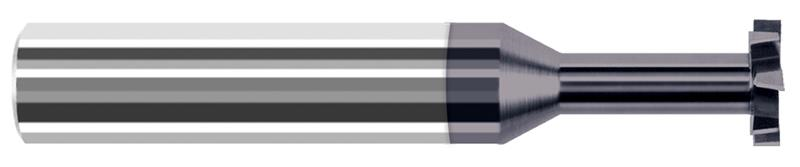

0.1875 in. (3/16) Cutter Diameter x 0.1250 in. (1/8) Width x 0.2810 in. (9/32) Neck Length 6 Flute AlTiN Coated Carbide Square Stagger Keyseat Cutter

  • Item Code: 907095-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Staggered tooth design with alternating RH / LH shear flutes, RH cut
    • Design improves shearing action, minimizes chip dragging and recutting, decreases vibration, and improves side wall finish
    • Relieved to allow cutting on both sides of head
    • Tool can be offset to increase width of groove
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Overall Length 2.0000" (2)
Type I
Brand Harvey Tool
Cutter Width 0.1250" (1/8)
Coating/Finish AlTiN
Neck Length 0.2810" (9/32)
Number of Flutes 6
Radial Depth of Cut 0.0370"
Fractional Diameter 3/16"
Neck Diameter 0.0940" (2.4 mm)
Reach Multiple (1.5x)
Shank Diameter 0.1875" (3/16)
Decimal Diameter 0.1875"
Material Solid Carbide
