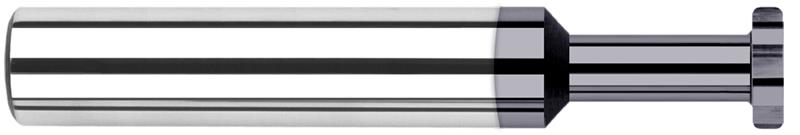

0.0930 in. (3/32) Cutter Diameter x 0.0100 in. Radius x 0.0310 in. (1/32) Width x 0.1410 in. Neck Length 4 Flute AlTiN Coated Carbide Corner Radius Keyseat Cutter

  • Item Code: 909131-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish AlTiN
Decimal Diameter 0.0930"
Type I
Overall Length 1.5000" (1-1/2)
Radial Depth of Cut 0.0210"
Radius Decimal 0.0100"
Reach Multiple (1.5x)
Cutter Width 0.0310" (1/32)
Top Corner Radius 0.01
Brand Harvey Tool
Fractional Diameter 3/32"
Neck Length 0.1410"
Material Solid Carbide
Neck Diameter 0.0470" (3/64)
Number of Flutes 4
Shank Diameter 0.1250" (1/8)
