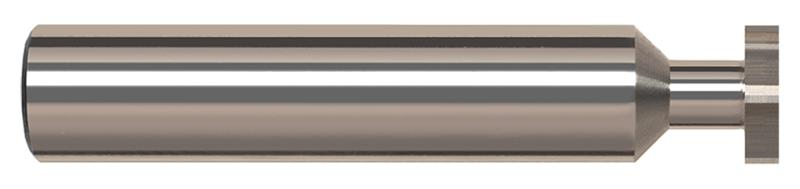

0.2500 in. (1/4) Cutter Diameter x 0.1250 in. (1/8) Width x 0.1250 in. (1/8) Neck Length 4 Flute Carbide Square Deep Keyseat Cutter for Non-Ferrous

  • Item Code: 909295
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Optimized for aluminum and aluminum alloys with excellent performance in copper, brass, and bronze alloys
    • Large flute opening and sharper cutting edge for improved performance in aluminum and other non-ferrous applications
    • Offered with TiB2 coating to minimize galling and enhance performance
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Reach Multiple (0.5x)
Brand Harvey Tool
Cutter Width 0.1250" (1/8)
Shank Diameter 0.2500" (1/4)
Fractional Diameter 1/4"
Overall Length 2.5000" (2-1/2)
Number of Flutes 4
Coating/Finish None
Neck Diameter 0.0780" (5/64)
Material Solid Carbide
Neck Length 0.1250" (1/8)
Radial Depth of Cut 0.0760"
Type II
Decimal Diameter 0.2500"
