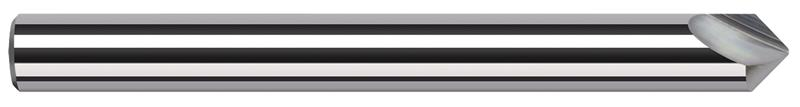

0.2500 in. (1/4) Shank Diameter x 0.0150 in. (1/64) Radius x 60 Deg. Included 2 Flute Carbide Marking Cutter

  • Item Code: 909730
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Milling Legible Part Numbers in Difficult-to-Machine Materials
    • Radiused Tip Design for Improved Strength
    • 2 Flute Cutting Design Has Improved Strength Over Single Point Engravers
    • Produces Radius in Bottom of Groove
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Fractional Cutting Diameter 1/4"
Shank Diameter Decimal 0.2500"
Radius Fractional 1/64"
Shank Diameter Fractional 1/4"
Decimal Cutting Diameter 0.2500"
Length of Cut 0.2015"
Number of Flutes 2
Overall Length 2.5000" (2-1/2)
Angle per Side 30
Included Angle 60
Material Solid Carbide
Radius Decimal 0.0150"
Brand Harvey Tool
Coating None
