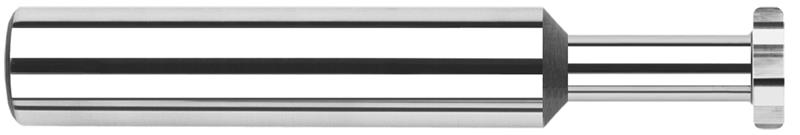

0.0620 in. (1/16) Cutter Diameter x 0.0050 in. Radius x 0.0150 in. (1/64) Width x 0.0930 in. (3/32) Neck Length 4 Flute Carbide Corner Radius Keyseat Cutter

  • Item Code: 910615
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Fractional Diameter 1/16"
Brand Harvey Tool
Neck Length 0.0930" (3/32)
Cutter Width 0.0150" (1/64)
Overall Length 1.5000" (1-1/2)
Radial Depth of Cut 0.0120"
Reach Multiple (1.5x)
Material Solid Carbide
Number of Flutes 4
Shank Diameter 0.1250" (1/8)
Top Corner Radius 0.005
Neck Diameter 0.0310" (1/32)
Decimal Diameter 0.0620"
Coating/Finish None
Radius Decimal 0.0050"
Type I
