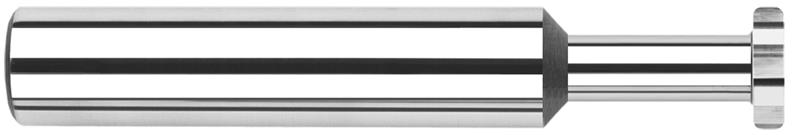

0.0620 in. (1/16) Cutter Diameter x 0.0050 in. Radius x 0.0310 in. (1/32) Width x 0.0930 in. (3/32) Neck Length 4 Flute Carbide Corner Radius Keyseat Cutter

  • Item Code: 910631
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Coating/Finish None
Material Solid Carbide
Neck Length 0.0930" (3/32)
Top Corner Radius 0.005
Fractional Diameter 1/16"
Neck Diameter 0.0310" (1/32)
Type I
Cutter Width 0.0310" (1/32)
Shank Diameter 0.1250" (1/8)
Number of Flutes 4
Overall Length 1.5000" (1-1/2)
Reach Multiple (1.5x)
Radius Decimal 0.0050"
Decimal Diameter 0.0620"
Radial Depth of Cut 0.0120"
