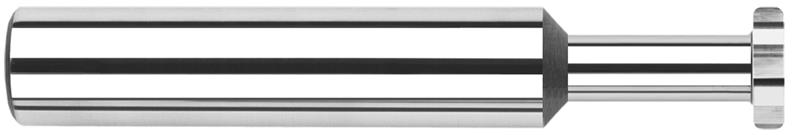

0.6250 in. (5/8) Cutter Diameter x 0.0150 in. (1/64) Radius x 0.1870 in. (3/16) Width x 1.0000 in. (1) Neck Length 8 Flute Carbide Corner Radius Keyseat Cutter

  • Item Code: 911170
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish None
Material Solid Carbide
Overall Length 3.5000" (3-1/2)
Radial Depth of Cut 0.1460"
Shank Diameter 0.6250" (5/8)
Top Corner Radius 0.015
Type I
Decimal Diameter 0.6250"
Number of Flutes 8
Radius Fractional 1/64"
Fractional Diameter 5/8"
Radius Decimal 0.0150"
Reach Multiple (1.5x)
Brand Harvey Tool
Cutter Width 0.1870" (3/16)
Neck Diameter 0.3120" (5/16)
Neck Length 1.0000" (1)
