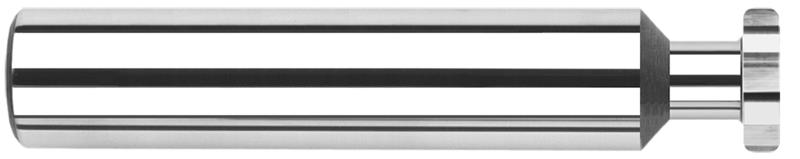

0.2500 in. (1/4) Cutter Diameter x 0.0100 in. Radius x 0.1250 in. (1/8) Width x 0.1250 in. (1/8) Neck Length 6 Flute Carbide Corner Radius Deep Keyseat Cutter

  • Item Code: 911795
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Number of Flutes 6
Overall Length 2.5000" (2-1/2)
Radius Decimal 0.0100"
Shank Diameter 0.2500" (1/4)
Coating/Finish None
Material Solid Carbide
Fractional Diameter 1/4"
Neck Length 0.1250" (1/8)
Radial Depth of Cut 0.0760"
Type II
Neck Diameter 0.0780" (5/64)
Top Corner Radius 0.01
Cutter Width 0.1250" (1/8)
Decimal Diameter 0.2500"
Reach Multiple (0.5x)
