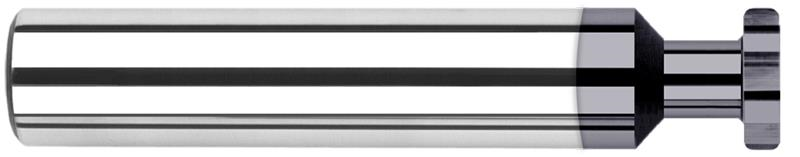

0.5000 in. (1/2) Cutter Diameter x 0.0150 in. (1/64) Radius x 0.1250 in. (1/8) Width x 0.2500 in. (1/4) Neck Length 8 Flute AlTiN Coated Carbide Corner Radius Deep Keyseat Cutter

  • Item Code: 913460-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 8
Radius Decimal 0.0150"
Neck Length 0.2500" (1/4)
Overall Length 3.0000" (3)
Radial Depth of Cut 0.1620"
Shank Diameter 0.5000" (1/2)
Fractional Diameter 1/2"
Brand Harvey Tool
Decimal Diameter 0.5000"
Material Solid Carbide
Neck Diameter 0.1560" (5/32)
Cutter Width 0.1250" (1/8)
Radius Fractional 1/64"
Reach Multiple (0.5x)
Top Corner Radius 0.015
Coating/Finish AlTiN
Type II
