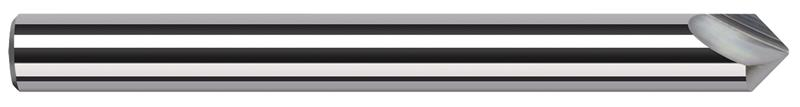

0.1875 in. (3/16) Shank Diameter x 0.0150 in. (1/64) Radius x 60 Deg. Included 2 Flute Carbide Marking Cutter

  • Item Code: 914330
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Milling Legible Part Numbers in Difficult-to-Machine Materials
    • Radiused Tip Design for Improved Strength
    • 2 Flute Cutting Design Has Improved Strength Over Single Point Engravers
    • Produces Radius in Bottom of Groove
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radius Fractional 1/64"
Fractional Cutting Diameter 3/16"
Overall Length 2.0000" (2)
Decimal Cutting Diameter 0.1875"
Shank Diameter Fractional 3/16"
Number of Flutes 2
Angle per Side 30
Included Angle 60
Length of Cut 0.1474"
Material Solid Carbide
Radius Decimal 0.0150"
Brand Harvey Tool
Coating None
Shank Diameter Decimal 0.1875"
