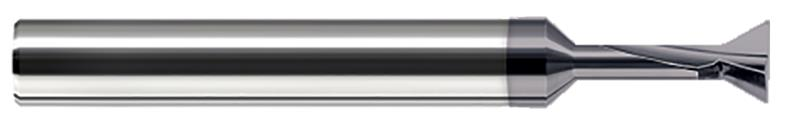

0.2500 in. (1/4) Cutter Diameter x 0.0100 in. Radius x 0.2500 in. (1/4) Neck Length x 30 Deg. Included 2 Flute AlTiN Coated Carbide Tip Radius Dovetail Cutter

  • Item Code: 914816-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Reduced neck for long reach machining
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish AlTiN
Brand Harvey Tool
Length of Cut 0.1560" (5/32)
Material Solid Carbide
Shank Diameter 0.2500" (1/4)
Decimal Cutting Diameter 0.2500"
Neck Length 0.2500" (1/4)
Angle per Side 15
Included Angle 30
Overall Length 2.0000" (2)
Radius Decimal 0.0100"
Fractional Cutting Diameter 1/4"
Neck Diameter 0.1720" (11/64)
Number of Flutes 2
