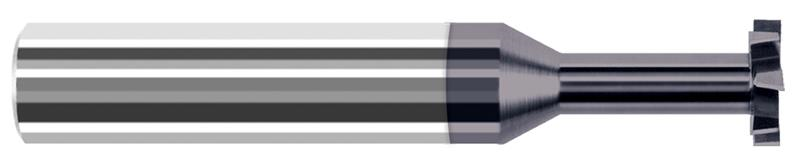

0.3750 in. (3/8) Cutter Diameter x 0.2500 in. (1/4) Width x 0.5630 in. Neck Length 8 Flute AlTiN Coated Carbide Square Stagger Keyseat Cutter

  • Item Code: 915880-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Staggered tooth design with alternating RH / LH shear flutes, RH cut
    • Design improves shearing action, minimizes chip dragging and recutting, decreases vibration, and improves side wall finish
    • Relieved to allow cutting on both sides of head
    • Tool can be offset to increase width of groove
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.2500" (1/4)
Neck Length 0.5630"
Decimal Diameter 0.3750"
Fractional Diameter 3/8"
Reach Multiple (1.5x)
Shank Diameter 0.3750" (3/8)
Number of Flutes 8
Brand Harvey Tool
Material Solid Carbide
Overall Length 2.5000" (2-1/2)
Type I
Coating/Finish AlTiN
Neck Diameter 0.1880"
Radial Depth of Cut 0.0840"
