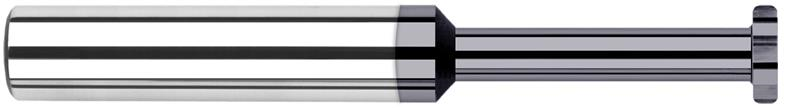

0.2500 in. (1/4) Cutter Diameter x 0.0050 in. Radius x 0.0470 in. (3/64) Width x 0.7500 in. (3/4) Neck Length 6 Flutes AlTiN Coated CarbideCorner Radius Standard Keyseat Cutter

  • Item Code: 916647-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Diameter 0.1250" (1/8)
Coating/Finish AlTiN
Overall Length Decimal 2.5000"
Brand Harvey Tool
Cutter Width 0.0470" (3/64)
Fractional Diameter 1/4"
Material Solid Carbide
Neck Length 0.7500" (3/4)
Number of Flutes 6
Reach Multiple (3x)
Type I
Radial Depth of Cut 0.0525"
Top Corner Radius 0.005
Corner Radius Decimal 0.0050"
Decimal Diameter 0.2500"
Overall Length Fractional 2-1/2"
Shank Diameter 0.2500" (1/4)
